Overview of spectra-ui

The python package spectra-ui is to operate the synchrotron radiation code SPECTRA from the python script.

How it works?

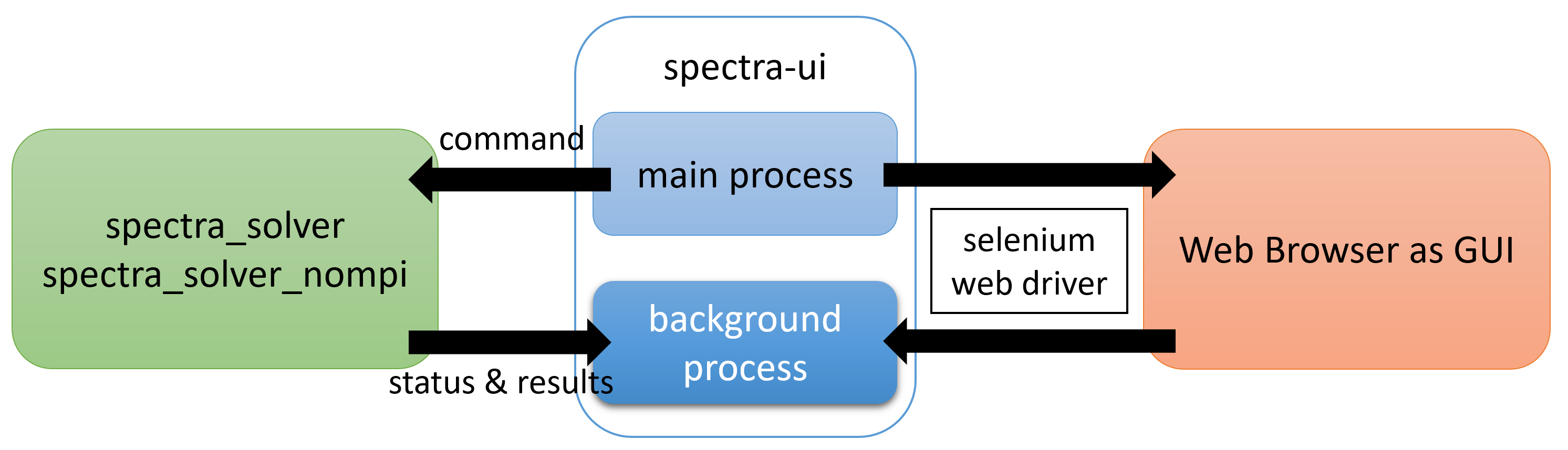

To save the effort of the software development as much as possible, spectra-ui takes advantage of the resource for the desktop version; the diagram shown below explains how spectra-ui works as a python script.

Diagram of how spectra-ui communicates with other software components.

As a GUI, spectra-ui opens the remote repository for the source file with a web browser and communicates with it through Selenium WebDriver, a well-known framework to automate the operation in the web browser. When necessary, spectra-ui invokes the solver (spectra_solver or spectra_solver_nompi) as a child process and communicates with it (sends a command or receives the status of progress). Upon completion of the child process, spectra-ui loads the result and sends it to the browser to be plotted in the Pre-Processing or Post-Processing tabbed panel. In case the user is offline, the source files, which are downloaded and stored in the local repository when spectra-ui is installed, can be used instead. Refer to Launch Options about how to enable this option.

Installation

spectra-ui is available from the Python Package Index (PyPI), and thus can be installed by a standard pip command,

pip install spectra-ui [--user]

or

pip3 install spectra-ui [--user]

on some platforms.

The [–user] option may be needed when global installation is not allowed. Note that binary packages are available for Windows and Mac OS platforms, but not for Linux distributions because of the too diverse versions of core libraries (glibc). Thus in Linux platforms, the source codes are downloaded and compiled during the installation process. This means that the user should arrange the environment for software development before installation, such as the C/C++ compiler, CMake, and MPI (optional), and the installation process may need a bit long time.

In version 12.2.0, the source code for the CLI mode (refer to Operation Modes for available operation modes) has been fully revised to use only the python standard libraries to communicate with the solver, instead of the Selenium WebDriver. As a result, several packages (selenium and wxPython) are no more needed if only the CLI mode is used and others are not; if the users do not like to install these packages, try [–no-deps] option to avoid installation of them. Note that pexpect package is still necessary, and should be installed manually in this case.

Another important revision in 12.2.0 in the CLI mode is the implementation of functions to plot the calculation results, and to show the parameters/configurations in a web-browser, without the GUI. This assists to use spectra-ui in the Jupyter environment.

Parallel Computing

spectra-ui supports parallel computing based on MPI. To enable this option, MPI library should be installed depending on the platform as follows.

Windows

Install MS-MPI; other MPI libraries are not supported.

Mac OS

Install MPICH; if you already have OpenMPI installed in your system (and like to continue to use it), compilation of the source files with the OpenMPI library is needed in the installation process; this can be done by running pip command with –no-binary option as follows,

pip install --no-binary spectra-ui [--user]

which avoids the installation of binary package and tries to compile the source files with the installed MPI library.

Linux

Install MPICH or OpenMPI. The pip command tries to find the installed MPI and compile the source files accordingly.

Getting Started

The simplest way to get started with spectra-ui is to run as a module. If you have “Chrome” browser installed in your environment, try,

python -m spectra

or,

python3 -m spectra

to launch spectra-ui as a GUI mode, in which most of the functions available in the desktop version are supported.

If you prefer another browser, add an option (for example -e for Edge) to specify it. Refer to Launch Options for details of how to launch spectra-ui using a preferred browser. Note that “Chrome” (or “Edge”) is recommended because of several issues encountered in other browsers as summarized below.

Web browsers supported in spectra-ui and known issues.

Browser	Remarks/Issues
Chrome	Fully tested and most recommended.
Edge	Recommended as well as Chrome.
Firefox	Loading source files from the local repository may fail. The user is requested to specify a directory to put the source files when spectra-ui is launched for the first time.
Safari	Not recommended for use, because GUI cannot be operated, or it is not editable because frozen by the OS. It just shows the parameters and configurations, and plots the pre- and post-processed results.

Operation Modes

There are three operation modes in spectra-ui: GUI, CLI, and interactive ones. To enable each operation mode, refer to the instruction of the function Start().

GUI mode

The GUI mode mimics the desktop version, and all the operations are done in the GUI (web browser). This mode has been prepared as an alternative to the desktop version in Linux distributions.

Interactive mode

The interactive mode has both of the capabilities available in the GUI and CLI modes. Namely, it can be operated through the GUI (web browser) and receives commands from the python script. Note that several menu commands (File-Exit, Run-Start Calculation, etc.) are disabled in the GUI; this is to avoid an unintended conflict between commands from the GUI and CLI.

CLI mode

The CLI (command line interface, or CUI = console user interface) mode is dedicated to the utilization of SPECTRA for a batch job. It communicates with the solvers through the python standard libraries, and the GUI is not shown. Note that visualization by the Pre- and Post-Processors have been available since 12.2.0 (plotly package needs to be installed). In addition, the parameters and configurations can be verified as an HTML format.

Tips for using the CLI in the Jupyter environment

The CLI mode is well compatible with the Jupyter (lab/notebook) environment; the input paramters and configurations can be displayed in an easy-to-read format, and the pre- and post-processing results can be plotted in various manners. Both of them are shown in an output cell, which helps to check the input condition and examine the output results.

Before going ahead, however, we have two issues to be addressed for using the CLI mode in the Jupyter environment. First, the plotly library, which is used in spectra-ui to generate a graphical plot, may not work in the Jupyter environment and simply output a white blank in the plot area. There are many different reasons for this issue, so the users are kindly requested to look for their solutions online. Second, the users may encounter an error message during the calculation, like “IOPub message/data rate exceeded.” This is not really an error in the spectra solver, but coming from an upper limit of the data/message transfer rate within the Jupyter environment. To solve this issue, one idea is to launch Jupyter with “–NotebookApp.iopub_data_rate_limit” and/or “–NotebookApp.iopub_msg_rate_limit” options. For details, refer to information about this issue found online.

Launch Options

Option	Alternative	Contents
–chrome	-c	Specify Chrome (default) as the browser for GUI.
–edge	-e	Specify Edge as the browser for GUI.
–firefox	-f	Specify Firefox as the browser for GUI.
–remote	-r	Use remote repository for the source file.
–local	-l	Use local repository (/path-to-python/site-packages/spectra/src/indx.html) for the source file.
